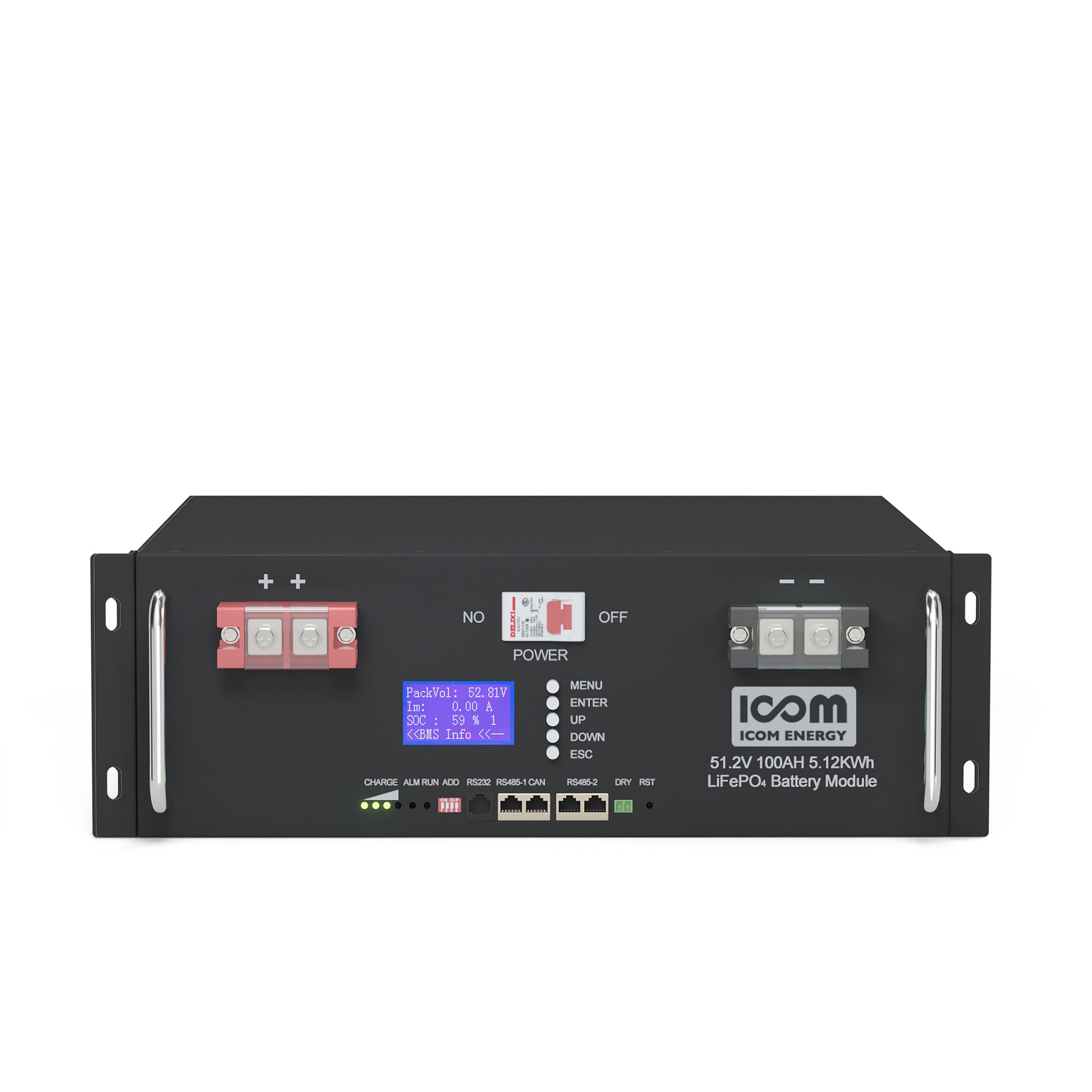

ICOM LiFePO4 51.2V 100Ah Battery
ICOM LiFePO4 51.2V 100Ah Battery
Couldn't load pickup availability
Model: ICOM-51100R
Icom Energy is excited to offer the ICOM-51100R LiFePO4 battery, with superior performance at the lowest available cost per cycle for a lithium-iron battery in South Africa.
The ICOM-51100R battery is a lithium-iron phosphate (LiFePO4) battery with new A-Grade 16-cell configuration. It offers exceptional performance, with 5kWh capacity, a depth of discharge up to 100% and an expected lifetime of 10+ years.
- Best cost per cycle for a lithium-iron battery
- new A-Grade cells
- 1C efficiency of discharge
- expected lifetime of 10+ years at 25°C
- suitable for daily cycling
- lightweight and suitable for wall mounting
- integrated battery management system, with LCD display
- extreme temperature resilience
- compatible with all known inverters
Specifications:
Energy: 5120Wh
Cycle Life: >6000 Cycles
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Internal resistance: ≤20mΩ
Months Self Discharge: <3%
Efficiency of Charge: 100% @0.2C
Efficiency of Discharge: 96~99% @1C
Cell & Method: new A-Grade 3.2V50AH-16S2P
Plastic Case: 4U Standard Case
Dimensions (mm): 482*400*177
Weight (kg): 43kg
Terminal: 100A Through Terminal
Continuous Current: 100A
Charge Temperature:
0 ℃ to 40 ℃ (32F to 104F) @60± 25% Relative Humidity
Discharge Temperature:
-20 ℃ to 60 ℃ (-4F to 140F) @60± 25% Relative Humidity
Discharge Cut-off Voltage: 40V
Charge Voltage: 58.4±0.2V
Charge Cut-off Voltage: 59.2V±0.2V
