Model: ICOM-0548P

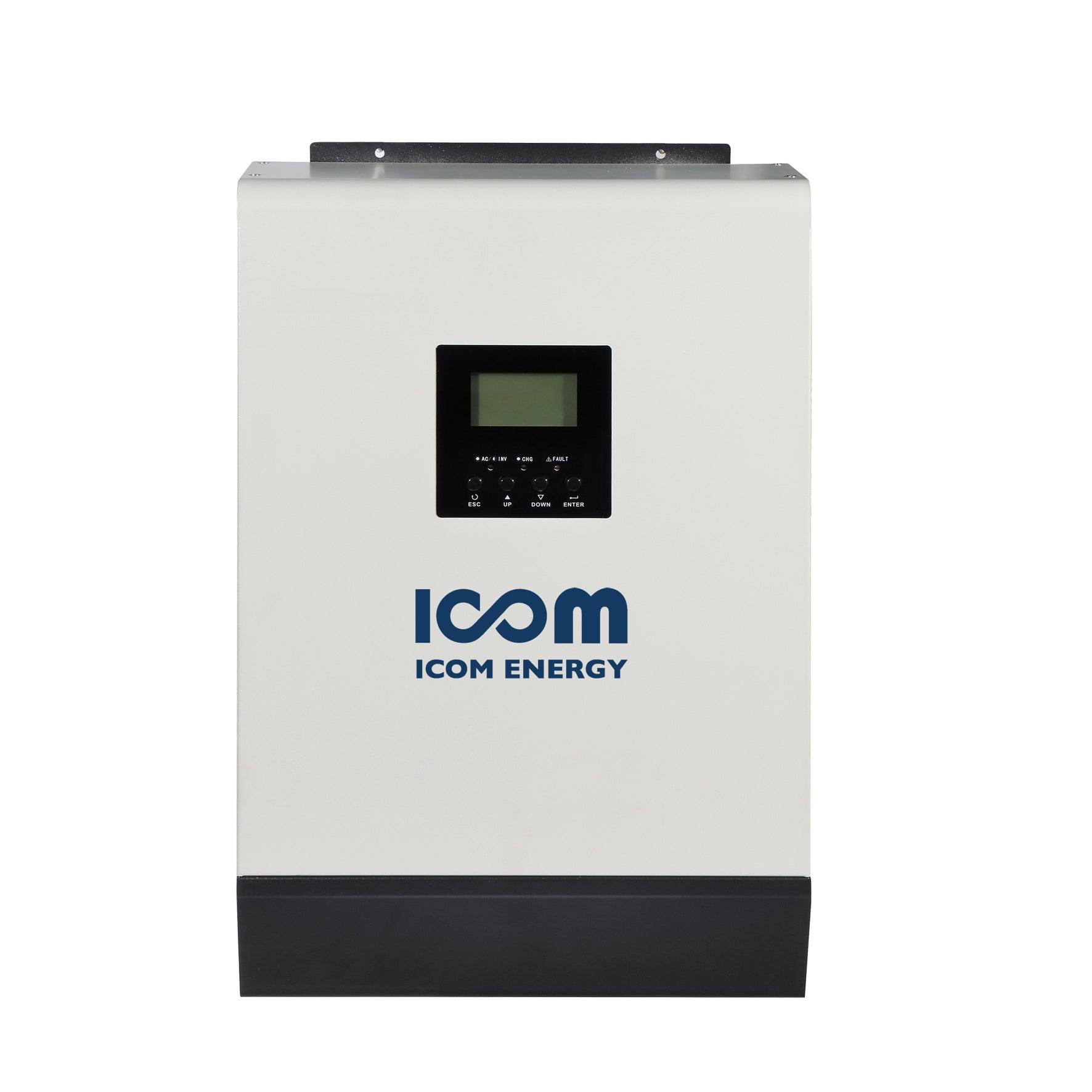

This is a multi functional off-grid inverter/charger, combining functions of an inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

1. High efficiency pure sine wave inverter (PF=1); Wide PV input range (120Vdc - 450Vdc) 80A MPPT SCC; Intelligent 3 stage 80A AC battery charger.

2. Surges to 2X continuous power for 5 seconds for motor loads.

3. Intelligent functionality enables utility and solar input prioritization.

4. Wide ulility input range ( 90V ac ~280Vac ) for unreliable grid even in the most challenging environments.

5. Field serviceable with replacement boards and spare parts.

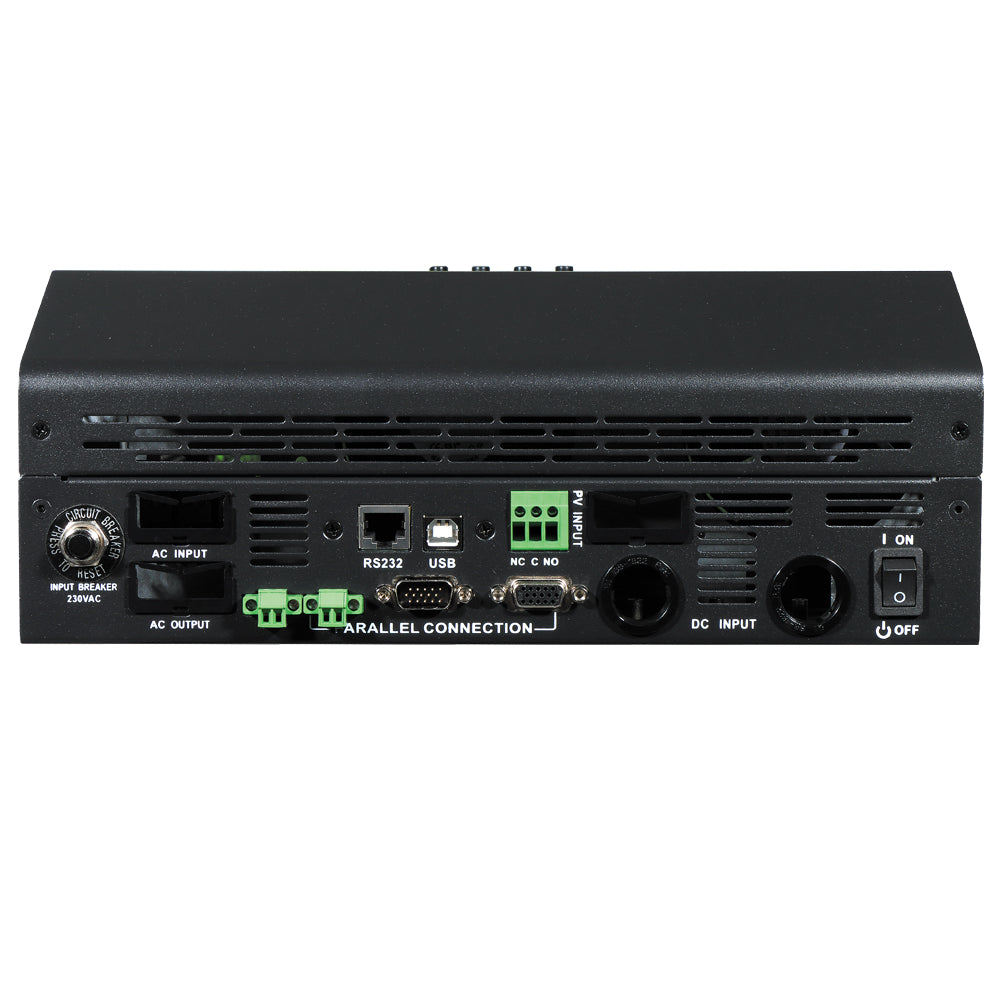

6. Monitor, troubleshoot, or communication with USB/RS 232.

7. System configures quickly into compact, wall-mounted system.

8. This series inverters can work without batteries when there is the sun.

9. Parallel operation with up to 9 units.

10. Wifi dongle for continuous monitoring.

Specifications:

Rated Power:  5000VA/5000W

Parallel Capability:  9 Units

INPUT

Voltage:  230 VAC

Selectable Voltage Range:

170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)

Frequency:  50 Hz/60 Hz (Auto Sensing)

OUTPUT

AC Voltage Regulation (Batt.Mode):  230VAC +/- 5%

Surge Power: 10000VA

Efficiency (Peak):  90%

Transfer Time:  10ms (Personal Computers); 20ms (Home Appliances)

Waveform:  Pure Sine Wave

BATTERY

Battery Voltage:  48VDC

Floating Charge Voltage:  54VDC

Overcharge Protection:  66VDC

SOLAR CHARGER & AC CHARGER

Maximum PV Array Power:  4500W

MPPT Range @ Operating Voltage:  120VDC - 430VDC

Maximum PV Array Open Circuit Voltage:  450VDC

Maximum Solar Charge Current:  80A

Maximum AC Charge Current:  80A

Maximum Charge Current:  80A

PHYSICAL

Dimension, DxWxH (mm):  120*295*468

Net Weight (kgs):  11

ENVIRONMENT

Humidity:  5% to 95% Relative Humidity (Non-condensing)

Operating Temperature:  0°C - 55°C

Storage Temperature:  -15°C - 60°C
