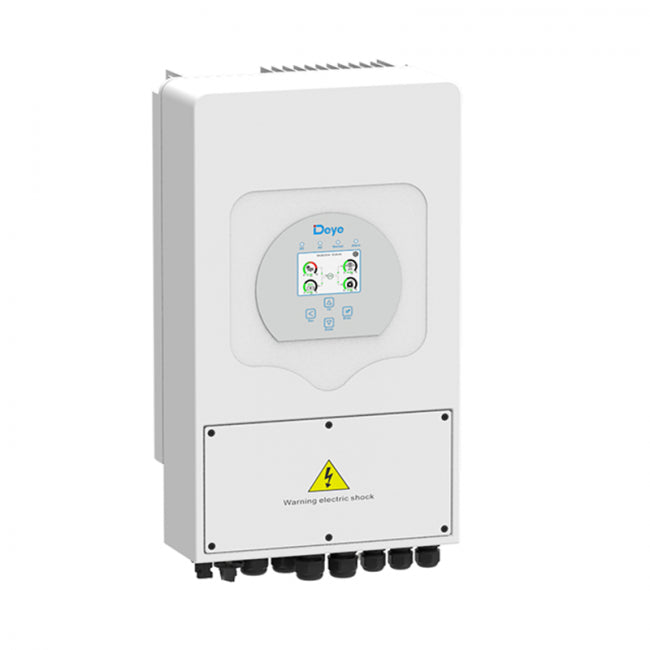

Deye Hybrid Inverter 5KW 48V + Wifi Dongle

Deye 5kw hybrid inverter has Higher yields

• Improve self-consumption ratio up to 80%, reducing your electricity bill
• DC/AC ratio up to 1.3, completely suitable for double-side PV modular
• Two MPPT design, Max. efficiency of 97.6%

User-friendly

• LCD Touch screen and buttons, easy operation
• Compatible with lithium-ion battery and lead acid battery
• Web browser and mobile App monitoring supported

Reliable

• PV lighting protection, Anti-islanding protection, Leakage current protection etc
• Support store energy from DG when needed, ensure the system working within 7*24H
• IP65 protection degree, adapt to indoor and outdoor using
• Automatically switch from on-grid to off-grid mode within 5ms
• Zero exporting function, fast reaction within 200ms in zero export mode

Smart

• Programmable charging and discharging schedule
• Both wind turbines and solar panels can be connected as DC input power
• Max. 16 units can be paralleled for higher system power
• Retrofitting of existing solar system to energy storage system

GRID/AC OUTPUT:
Grid Type: Single Phase
Protection Degree: IP65
Maximum Charge/Discharge Current: 120A
Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
AC Output & UPS Power: 5000W
Maximum AC Output Power: 5500W
AC Output Rated Current: 22.7A
Maximum AC Current:
Maximum Efficiency: 97.60%

PV INPUT:
Maximum DC Input Power: 6500W
Rated PV Input Voltage: 370V (125-500V)
2 x MPPT
Start-up Voltage: 125V
Full Load DC Voltage: 300V-425V
PV Input Current: 17A + 17A

BATTERY:
Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
Battery Voltage Range: 40-60V
Communication with BMS: CAN/RS485

SIZE:

80CM X 50CM X 37CM

5 Years Warranty

• Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
