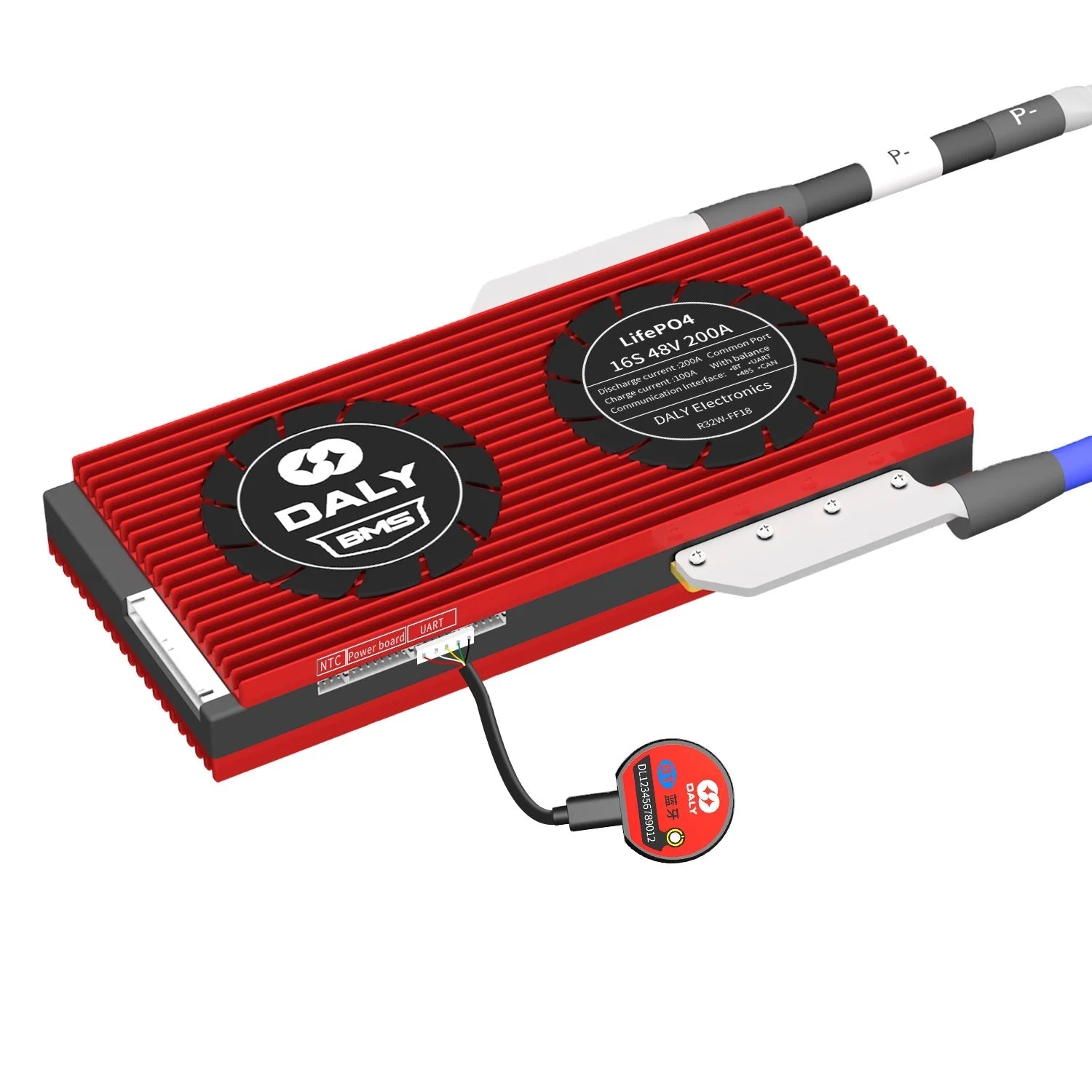

DALY Smart BMS 16S 48V LifePO4 PCB Protection Board with Balance Leads - 200A

DALY Smart BMS 16S 48V LifePO4 PCB Protection Board with Balance Leads and Wireless Bluetooth Module for 16 Cells 48Volts Lithium Battery Pack (Smart BMS+RS485+CAN,200A

This is DALY smart bms Rated 3.2V with smart communication function (CAN)

Battery pack strings must be matched with BMS strings.

DALY BMS Adopt top quality (A-level) IC Solution make battery management much more efficient , greatly help to keep battery pack healthy and stable.

Extending battery life-span, improve performance. DALY BMS being waterproof test, humidity resistance .

DALY BMS can be applied with home power storage system , RV Power supply , E-bike and other lithium battery related device .

Factory Default Setting:

Over Charge detect voltage: 3.75±0.05

Over Charge release voltage: 3.65±0.05

Over Charge protection delay 1s

Balance detect Voltage: 3.2V

Balance Current: 35±5 mA

Over discharge voltage detect :2.2±0.1 V(The over-discharge protection voltage can be reset in certain range by bluetooth app if you need it)

Over Discharge Detect delay 1s

Over discharge voltage release voltage: 2.3±0.1 V

BMS Self-Consumption Working Current :≤20 ma
